Average Elbow Height by Stature

Based on 6,068 participants from the U.S. Army ANSUR II anthropometric survey, one of the most comprehensive body measurement datasets available. See full methodology and raw data below.

seat to elbow

🪑 Sitting Elbow Height

Definition: The vertical distance from the sitting surface to the lowest point of the right elbow (the olecranon landmark) when the subject is sitting erect and the elbow is flexed at 90 degrees.

Male (50th percentile)
Female (50th percentile)

Imperial (US)

Male Height	Sitting Elbow Height
4′11″	8.9 in
5′0″	9.0 in
5′1″	9.1 in
5′2″	9.1 in
5′3″	9.2 in
5′4″	9.3 in
5′5″	9.3 in
5′6″	9.4 in
5′7″	9.5 in
5′8″	9.6 in
5′9″	9.6 in
5′10″	9.7 in
5′11″	9.8 in
6′0″	9.9 in
6′1″	9.9 in
6′2″	10.0 in
6′3″	10.1 in
6′4″	10.2 in
6′5″	10.2 in

Metric: 150–172

Height (cm)	Sitting Elbow Height (cm)
150	22.6
151	22.7
152	22.8
153	22.8
154	22.9
155	23.0
156	23.1
157	23.1
158	23.2
159	23.3
160	23.4
161	23.4
162	23.5
163	23.6
164	23.7
165	23.7
166	23.8
167	23.9
168	24.0
169	24.0
170	24.1
171	24.2
172	24.3

Metric: 173–195

Height (cm)	Sitting Elbow Height (cm)
173	24.3
174	24.4
175	24.5
176	24.6
177	24.6
178	24.7
179	24.8
180	24.8
181	24.9
182	25.0
183	25.1
184	25.2
185	25.2
186	25.3
187	25.4
188	25.5
189	25.5
190	25.6
191	25.6
192	25.7
193	25.8
194	25.9
195	25.9

Imperial (US)

Female Height	Sitting Elbow Height
4′9″	8.8 in
4′10″	8.9 in
4′11″	8.9 in
5′0″	9.0 in
5′1″	9.0 in
5′2″	9.1 in
5′3″	9.1 in
5′4″	9.1 in
5′5″	9.2 in
5′6″	9.2 in
5′7″	9.3 in
5′8″	9.3 in
5′9″	9.4 in
5′10″	9.4 in
5′11″	9.5 in

Metric: 145–162

Height (cm)	Sitting Elbow Height (cm)
145	22.4
146	22.4
147	22.5
148	22.5
149	22.6
150	22.6
151	22.7
152	22.7
153	22.8
154	22.8
155	22.9
156	22.9
157	23.0
158	23.0
159	23.1
160	23.1
161	23.2
162	23.2

Metric: 163–180

Height (cm)	Sitting Elbow Height (cm)
163	23.3
164	23.3
165	23.4
166	23.4
167	23.5
168	23.5
169	23.6
170	23.6
171	23.7
172	23.7
173	23.8
174	23.8
175	23.9
176	23.9
177	23.9
178	24.0
179	24.0
180	24.1

Seated figure with a red dot on the olecranon and a green arrow showing seat-to-elbow height.

Regression models used

These tables are made using linear regression models derived from individual ANSUR II measurements of “elbow rest height, sitting”.

Male formula:
Sitting Elbow Height (cm) = 0.0733 × Height (cm) + 11.63

Female formula:
Sitting Elbow Height (cm) = 0.0471 × Height (cm) + 15.57

Gender difference

The difference is real but modest. At the same stature, men are typically about 0.5–1.0 cm (0.2–0.4 in) higher than women.

Because women generally have narrower shoulders that slope differently and slightly shorter upper arms, their elbows naturally rest slightly closer to their hips. Therefore, the physical gap between the seat and the bottom of the elbow is smaller.

Floor to elbow

🧍 Standing Elbow Height

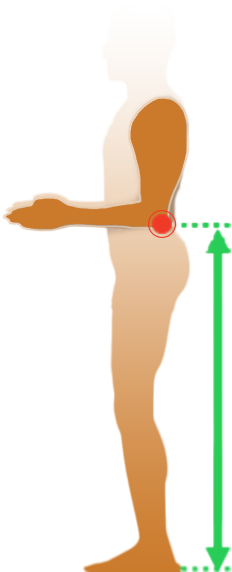

Definition: The vertical distance between a standing surface and the bottom of the elbow (olecranon), measured while standing erect with the forearm and hand held horizontally.

Male (50th percentile)
Female (50th percentile)

Imperial (US)

Male Height	Standing Elbow Height
4′11″	35.9 in
5′0″	36.5 in
5′1″	37.1 in
5′2″	37.7 in
5′3″	38.3 in
5′4″	38.9 in
5′5″	39.5 in
5′6″	40.1 in
5′7″	40.7 in
5′8″	41.3 in
5′9″	41.9 in
5′10″	42.4 in
5′11″	43.0 in
6′0″	43.6 in
6′1″	44.2 in
6′2″	44.8 in
6′3″	45.4 in
6′4″	46.0 in
6′5″	46.6 in

Metric: 150–172

Height (cm)	Standing Elbow Height (cm)
150	91.2
151	91.9
152	92.5
153	93.2
154	93.9
155	94.5
156	95.2
157	95.9
158	96.5
159	97.2
160	97.9
161	98.5
162	99.2
163	99.9
164	100.5
165	101.2
166	101.9
167	102.5
168	103.2
169	103.9
170	104.5
171	105.2
172	105.9

Metric: 173–195

Height (cm)	Standing Elbow Height (cm)
173	106.5
174	107.2
175	107.9
176	108.5
177	109.2
178	109.9
179	110.6
180	111.2
181	111.9
182	112.6
183	113.2
184	113.9
185	114.6
186	115.2
187	115.9
188	116.6
189	117.2
190	117.9
191	118.6
192	119.2
193	119.9
194	120.6
195	121.2

Imperial (US)

Female Height	Standing Elbow Height
4′9″	35.0 in
4′10″	35.6 in
4′11″	36.2 in
5′0″	36.8 in
5′1″	37.4 in
5′2″	38.0 in
5′3″	38.6 in
5′4″	39.2 in
5′5″	39.8 in
5′6″	40.4 in
5′7″	41.0 in
5′8″	41.6 in
5′9″	42.2 in
5′10″	42.8 in
5′11″	43.4 in

Metric: 145–172

Height (cm)	Standing Elbow Height (cm)
145	88.8
146	89.4
147	90.1
148	90.7
149	91.4
150	92.0
151	92.7
152	93.3
153	94.0
154	94.6
155	95.3
156	96.0
157	96.6
158	97.3
159	97.9
160	98.6
161	99.2
162	99.9

Metric: 163–180

Height (cm)	Standing Elbow Height (cm)
163	100.5
164	101.2
165	101.8
166	102.5
167	103.1
168	103.8
169	104.4
170	105.1
171	105.8
172	106.4
173	107.1
174	107.7
175	108.4
176	109.0
177	109.7
178	110.3
179	111.0
180	111.6

How ANSUR II measures standing elbow

Standing elbow height is not directly measured. Instead, it is derived by adding sitting elbow height to stature, then subtracting sitting height (distance from the sitting surface to the top of the head).

Models used for this table

Female Standing Elbow Height (cm) = 0.6536 × Height − 6.02
Male Standing Elbow Height (cm) = 0.6676 × Height − 8.95

At the same stature, women consistently have slightly higher elbow heights than men. This is the opposite of sitting and it is expected: women tend to have proportionally longer legs relative to their torso, so when standing, their elbow sits higher relative to the floor.

Anatomical diagrams of seated and standing figures with elbow height measurement lines, alongside data tables.

📊 About This Data

These height-specific values are derived from the ANSUR II anthropometric dataset, one of the most comprehensive publicly available body-measurement surveys used for ergonomics.

Each participant was measured using standardized protocols.

4,082 men 👦
1,986 women 👧

How these height-tables were created

ANSUR provides individual measurements. When medians are calculated at each 1 cm stature increment, some groups contain very few people. This can create irregular jumps that do not reflect true anatomical trends.

To produce stable and realistic height-based estimates:

For both sitting and standing measurements, sex-specific linear regression models were fitted to the individual-level data, linking stature to elbow height.

These models:

Closely follow dataset medians in well-populated height ranges
Eliminate statistical noise from small sample sizes
Preserve the anatomical relationships observed in the raw data

What can this info be used for?

Elbow height is one of the most important measurements in office ergonomics, directly informing the optimal standing or sitting desk and table height. It also helps with setting chair armrests correctly, and with finding the right desk and keyboard height combination to maintain a comfortable, open elbow position.

Below are the raw ANSUR II height-binned medians and participants

Sitting Elbow Height Mean:

Females: 23.30 cm / 9.17 in
Males: 24.60 cm / 9.69 in

Male Height (cm)	Median Sitting Elbow Height (cm)	Men
149	22.20	1
153	23.20	1
154	24.90	1
156	23.60	1
157	23.90	11
158	21.70	11
159	24.00	6
160	23.30	19
161	22.90	19
162	23.10	31
163	23.90	25
164	23.55	64
165	24.20	73
166	23.70	109
167	24.00	110
168	24.00	145
169	24.35	134
170	23.80	169
171	24.40	175
172	24.25	252
173	23.70	189
174	24.50	296
175	24.70	189
176	24.80	251
177	24.70	209
178	24.20	248
179	24.50	187
180	25.20	218
181	25.15	152
182	25.35	160
183	25.05	112
184	25.30	120
185	25.60	87
186	26.20	82
187	25.30	49
188	25.40	37
189	25.25	32
190	26.20	28
191	27.00	16
192	26.75	18
193	25.50	14
194	23.95	10
195	26.20	8
196	26.90	5
197	26.20	5
198	27.30	2
199	29.00	1

Female Height (cm)	Median Sitting Elbow Height (cm)	Women
141	23.70	1
144	23.50	3
145	28.20	3
146	23.40	5
147	22.80	3
148	22.20	6
149	22.50	7
150	22.40	25
151	21.90	15
152	23.30	35
153	22.80	38
154	22.70	47
155	22.50	41
156	23.00	88
157	22.90	77
158	22.60	93
159	23.50	101
160	22.50	139
161	23.60	121
162	23.35	136
163	23.20	117
164	23.30	123
165	23.10	89
166	23.85	122
167	23.40	92
168	23.20	103
169	23.30	53
170	23.45	64
171	22.80	47
172	23.70	48
173	24.20	33
174	24.70	32
175	22.90	24
176	24.60	15
177	23.90	17
178	23.40	7
179	26.10	7
180	18.70	1
181	21.45	2
182	23.35	4
183	22.85	2

Standing Elbow Height Mean:

Females: 100.43 cm / 39.45 in
Males: 108.30 cm / 42.64 in

Male Height (cm)	Median Standing Elbow Height (cm)	Men
149	89.50	1
153	97.20	1
154	93.80	1
156	99.10	1
157	96.80	11
158	95.60	11
159	96.05	6
160	97.50	19
161	98.30	19
162	99.20	31
163	99.90	25
164	100.75	64
165	101.30	73
166	101.80	109
167	102.70	110
168	103.10	145
169	103.85	134
170	104.30	169
171	105.10	175
172	105.75	252
173	106.60	189
174	107.10	296
175	108.00	189
176	108.60	251
177	109.10	209
178	109.80	248
179	110.30	187
180	111.20	218
181	112.10	152
182	112.75	160
183	113.00	112
184	113.75	120
185	114.80	87
186	115.45	82
187	115.20	49
188	116.20	37
189	117.40	32
190	117.45	28
191	118.75	16
192	119.10	18
193	119.80	14
194	120.25	10
195	121.35	8
196	123.30	5
197	122.40	5
198	124.85	2
199	126.40	1

Female Height (cm)	Median Standing Elbow Height (cm)	Women
141	85.40	1
144	88.50	3
145	90.10	3
146	89.50	5
147	90.00	3
148	90.55	6
149	90.60	7
150	92.30	25
151	92.50	15
152	93.30	35
153	94.00	38
154	94.30	47
155	95.60	41
156	96.10	88
157	96.50	77
158	96.70	93
159	98.10	101
160	98.50	139
161	99.00	121
162	99.60	136
163	100.20	117
164	101.30	123
165	101.50	89
166	102.60	122
167	103.05	92
168	104.00	103
169	104.20	53
170	105.00	64
171	105.70	47
172	106.05	48
173	107.80	33
174	108.30	32
175	108.60	24
176	110.70	15
177	108.80	17
178	110.40	7
179	112.70	7
180	109.20	1
181	111.55	2
182	112.15	4
183	113.90	2
